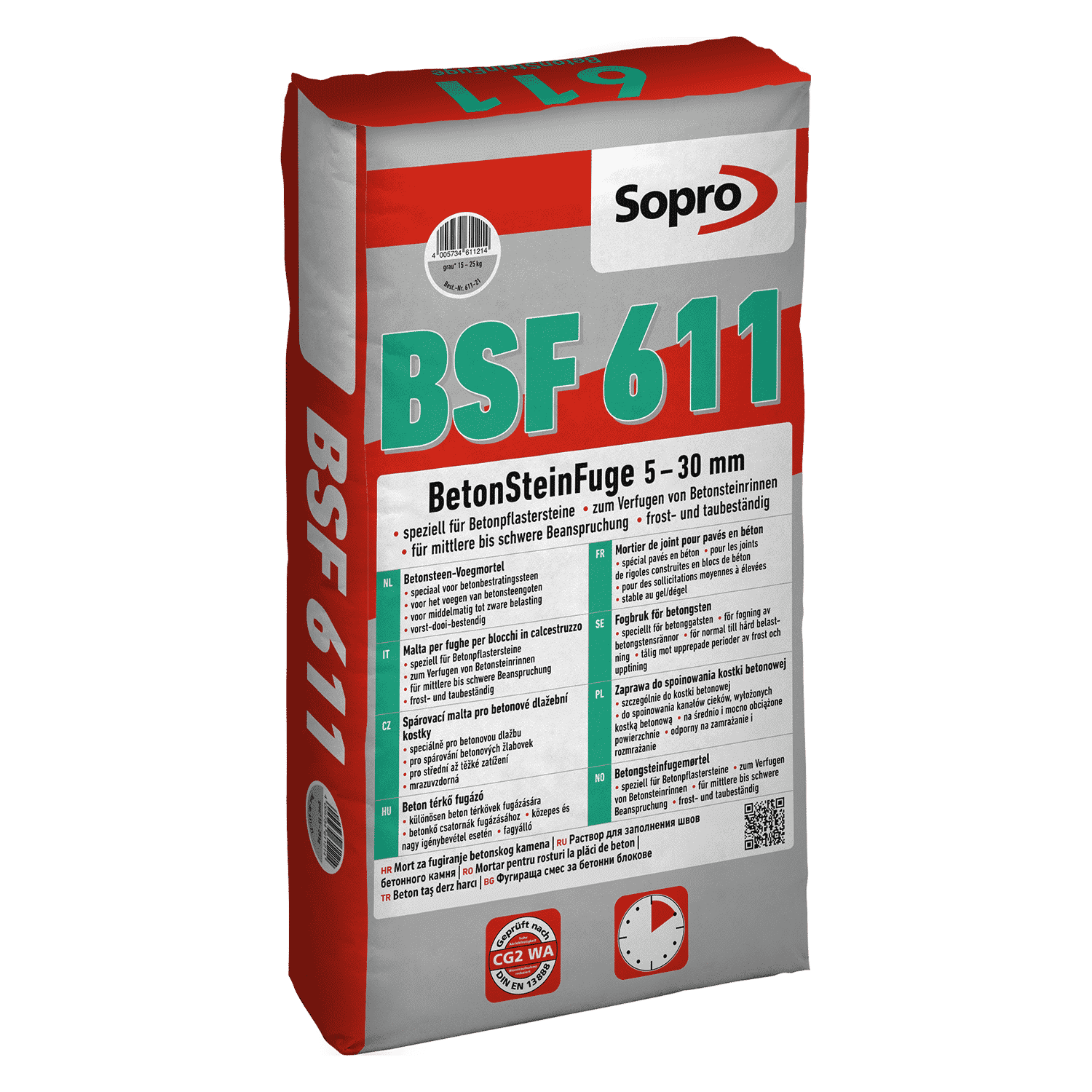

Streetscape® Sopro BSF 611 – Paving grout for concrete units 5 –30 mm
Rapid-set, trass-bearing, cementitious paving grout, particularly suitable for in concrete segmental pavements in gardens/landscaped areas and in medium- to heavy-duty vehicular pavements, including areas exposed to frost and de-icing salts. Specially tailored to properties of concrete pavers (e.g. in respect of strength and temperature behaviour). Suitable for linear structures, e. g. roads and drainage channels, for roundabouts and for hard landscaped areas, e. g. marketplaces. Contains Rhenish trass. Use of Sopro PFM high-strength paving grout is recommended for natural stone segmental pavements.
Sopro BSF 611 is a rapid-set, hydraulic, trass-bearing paving grout, meeting CG2 WA requirements to DIN EN 13 888, for 5 – 30 mm joint widths. Special additives lend grout its compact, medium- to high-strength microstructure, thereby making it suitable for medium- to heavy-duty vehicular pavements. Contains Rhenish trass. The formulation is specially tailored to the properties of concrete pavers (e.g. in respect of strength and temperature behaviour).
Related Downloads
TDS Sopro BSF 611 – Paving Grout for Concrete Units
Featured Benefits of Streetscape® BSF 611 – Paving grout for concrete units 5 –30 mm
- For 5 – 30 mm joint widths
- For indoor and outdoor use
- Compressive strengths ≥ 30 N/mm²
- Resistant to suction sweeper load
- Suitable for high-pressure water jetting
- Resistant to frost and de-icing salts
- Early walkability and loadability
- Low-chromate to Regulation 1907/2006 EC, Annex XVII
- Early walkability and loadability.
- Suitable for use categories N1 – N3 under ZTV Wegebau (Special Technical Conditions and Guidelines for Pathways and Squares), VBK 1 – 6 under DNV “Pflaster” (German Natural Stone Association Segmental Pavement Guidelines; 2014), and Bk 0.3 – 1.8 under RStO (Guidelines for Standardisation of Vehicular Pavements; 2012)
- For indoor and outdoor use
- For floors
- Colour: grey 15
Technical Details for Streetscape® BSF 611 – Paving grout for concrete units 5 –30 mm
| Colour | grey 15 |
| Mixing Ratio (water only) | 3.5 – 4.0 ltr water: 25 kg Sopro BSF 611, depending on required consistency |
| Pot Life | Approx. 20 minutes; stiffened mortar shall not be retempered by addition of water or fresh mortar to restore workability |
| Maturing time | 3 – 5 minutes |
| Working life | Approx. 20 minutes; stiffened mortar shall not be retempered by addition of water or fresh mortar to restore workability |
| Walkable | After 2 – 2.5 hours |
| Loadable | After approx. 6 hours; by vehicular traffic after approx. 3 day |
| Loading | After approx. 7 days |
| Suitability for high-pressure water jetting equipment | Up to 160 bar (minimum distance approx. 20 cm); up to 120 bar after 3 days and up to 160 bar after 28 days |
| Flexural tensile strength | ≥ 7 N/mm² |
| Compressive strength | ≥ 30 N/mm² |
| Application temperature | Between +5 °C and max. +25 °C |
| Storage | Approx. 12 months, subject to storage on pallet in dry conditions in original unopened containers |
| Joint width | 5 – 30 mm |
| Coverage | 1.9 kg for 1 ltr fresh grout, e.g. approx. 15 kg powder per m² for 10 × 20 cm or 15 × 15 cm concrete pavers with 1 cm joint width and 6 cm joint depth |
Packaging: 25kg bags
SMET supply a range of Streetscape® materials suitable for all Streetscape® hardscaping uses, from laying, grouting, cleaning and sealing concrete or other paving unit.
